Brand: Jiuban
Model: JB-3500S

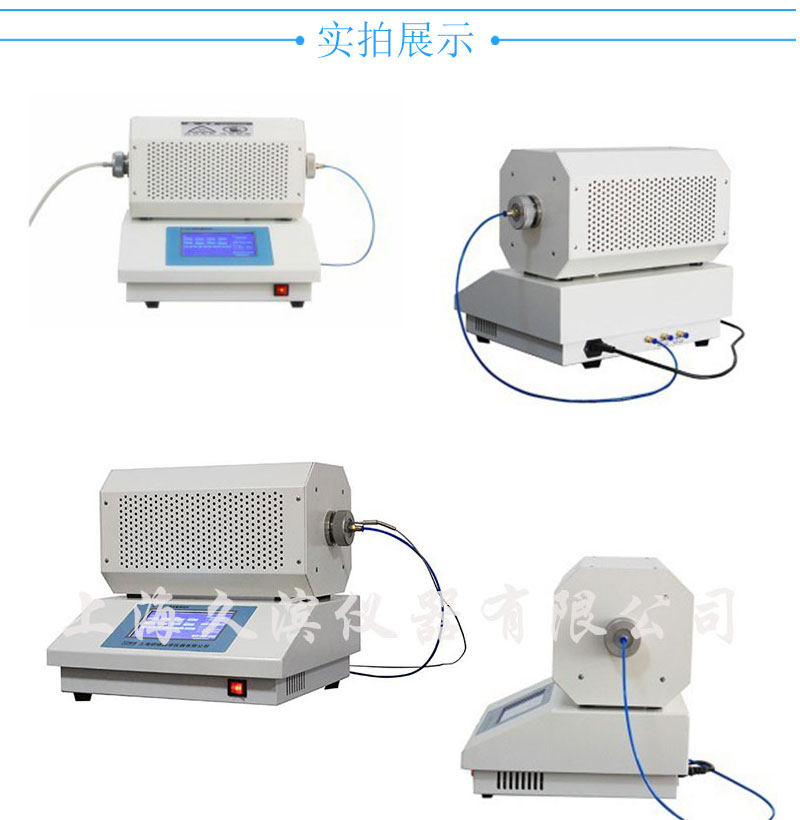

Name: Carbon black content tester
Product introduction:

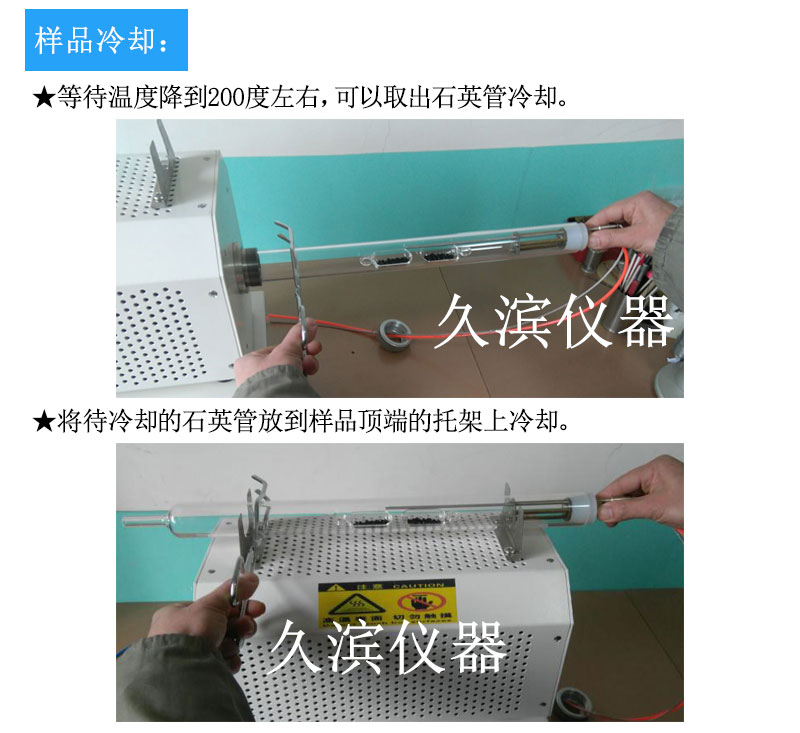

Sampling in the test process is simple, and the sample is directly extracted by using the guide rail pulling type and supporting the guide rail. No need to open the sealing valve, no need to use other sampling tools, reduce the error of many links, greatly improve the measurement accuracy. Atmosphere switching: fully automaticThe carbon black content tester is suitable for the determination of carbon black content in polyethylene, polypropylene, polybutylene plastics, cable and optical cable insulation and sheath materials, rubber. Carbon black is tested by weight analysis of samples calcined in oxygen at high temperature under the protection of nitrogen. The instrument has the advantages of convenient use, simple operation, reliable operation, accurate measurement and automatic temperature control。
Meet the criteria:
ISO 6964，GB/T 13021，IEC 60811-4-1，GB/T 2951.41，JTG E50 T1165，ASTM D1603-2012，CJ/T 125—2000
GB/T 2951.41-2008《General Test Method for Cable and Optical Cable Insulation and Sheath Materials》
GBT 3515-2005《Rubber - Determination of carbon content - pyrolysis》
GBT 13021-1991《 Measuring Instrument for Carbon Black Content in Polyethylene Pipes and Fittings (Thermal Weightlessness Method)》
YDT 837.3-1996《Copper-core polyolefin insulated aluminium-plastic sheath test method for municipal communication cables Part 3 Test method for mechanical and physical properties》
Main technical parameters:
| temperature range | room temperature～1100℃ |
| Temperature fluctuation | ±0.2℃ |
| heating rate | 0.1～40℃/min |
| Temperature Resolution | 0.01℃ |
| gas pressure | 0.2MPa |
| temperature control | Full automatic control |
| Gas flow rate | 0～300mL/min or 0～2000mL/min |
| Atmosphere control | Gas Mass Flowmeter |
| Display mode | 24 bit color, 7 Inch Touch Screen |
| Heating zone | Length 220mm |
| Quartz tube | Length 440 mm, inner diameter 32mm |
| Quartz boat | Length 50 mm or 75 mm |
| Shape size (w*d*h) | 42*37*40cm |
| Packaging dimensions (w*d*h) | Wooden cases 61*50*52 |
| Net weight | 25KG |
| Gross weight | 41KG |
